Tree and TreeTable

Purpose

The Tree and TreeTable ViewTemplates visualize hierarchical data. Both are used for parent-child structures, grouped records, or mixed hierarchies, but they differ in presentation.

• Tree focuses on hierarchical nodes with title, description, and icon fields.
• TreeTable extends that concept with table columns.

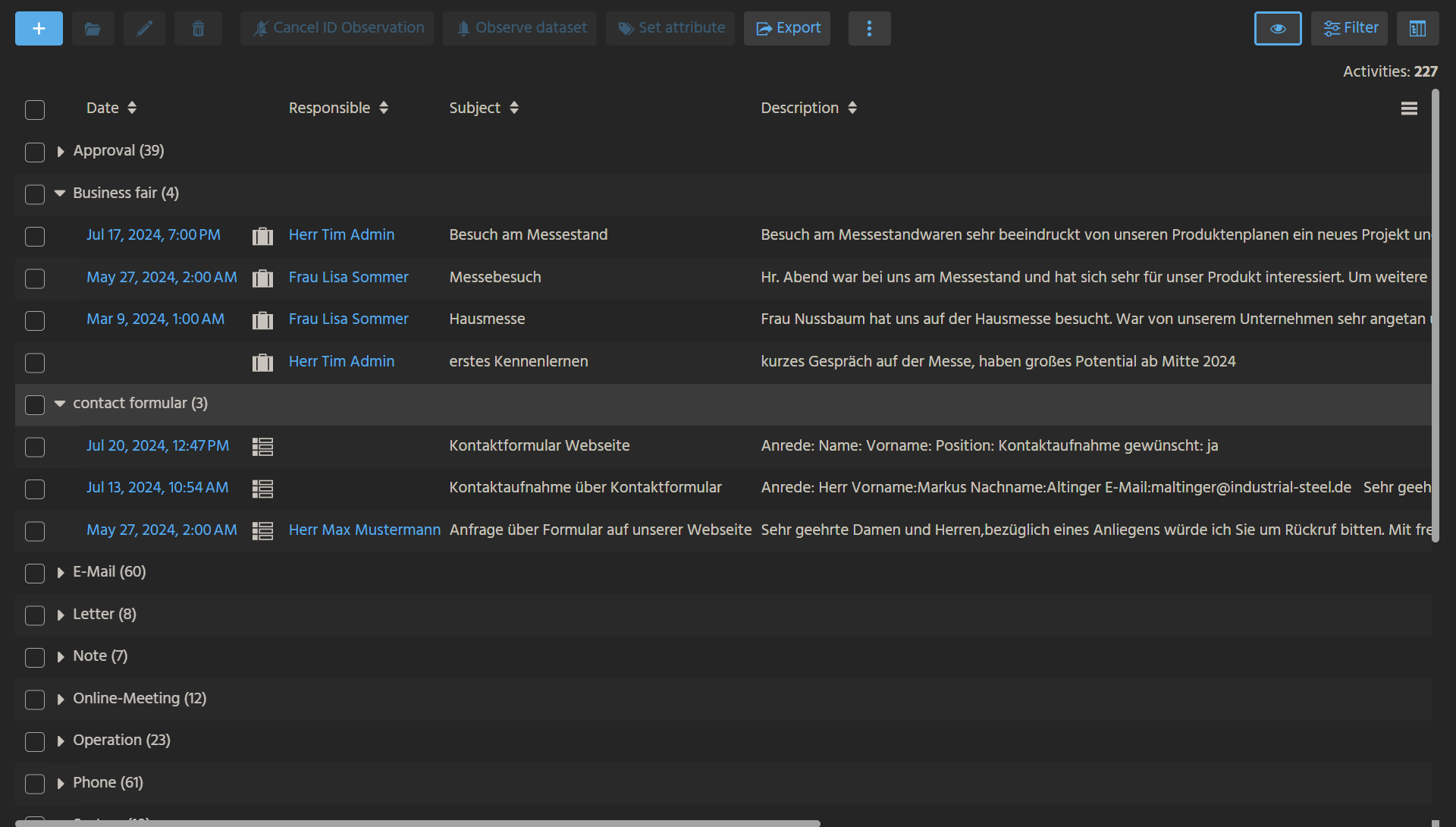

Figure: TreeTable with grouped tabular data.

Behavior

Tree

The Tree ViewTemplate groups datasets hierarchically and supports:

• grouping through defaultGroupFields
• leaf rendering through titleField, descriptionField, and iconField
• optional ActionGroups
• optional child counters through showChildrenCount

TreeTable

The TreeTable ViewTemplate displays grouped datasets in a table-like structure and supports:

• columns through columns
• grouping through defaultGroupFields
• optional drag-and-drop if parentField is configured accordingly

note

TreeTable is typically used in Filter Views when grouping should remain visible together with tabular data.

Configuration

Important Tree properties include:

Property	Description
entityField	Defines the source entity, often #ENTITY.
linkedColumns	Defines fields used for navigation to related Views.
parentField	Defines the tree hierarchy.
informationField	Defines optional additional information.
nodeExpandedField	Controls the initial expanded state.
titleField	Defines the node title.
descriptionField	Defines secondary node information.
iconField	Defines the node icon or image.
defaultGroupFields	Defines the default grouping fields.
fixedFilterFields	Restricts the available grouping fields.
expandRootItems	Expands all root items by default.

Important TreeTable properties include:

Property	Description
entityField	Defines the source entity, often #ENTITY.
columns	Defines the visible columns.
linkedColumns	Enables navigation to related records.
parentField	Defines the hierarchy.
informationField	Defines optional top-line information.
defaultGroupFields	Defines the default grouping.
fixedFilterFields	Restricts grouping fields.
expandRootItems	Expands all root items by default.

warning

If expandRootItems is used without paging, the client may load all items at once and performance may degrade.

Data requirements

Parent records must be added before child records. This applies to both JDitoRecordContainer and DatabaseRecordContainer implementations.

Two common strategies are:

• layer-by-layer generation for known hierarchy levels
• recursive loading for unknown or variable depth

Example usage

An example of Tree is the ViewTemplate Tree in 360DegreeFilter_view, used in contexts such as Company.

An example of TreeTable is ActivitiesTreeTable in ActivityFilter_view.

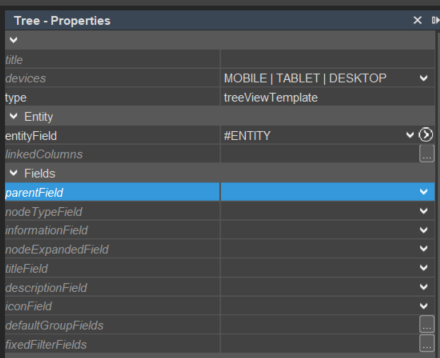

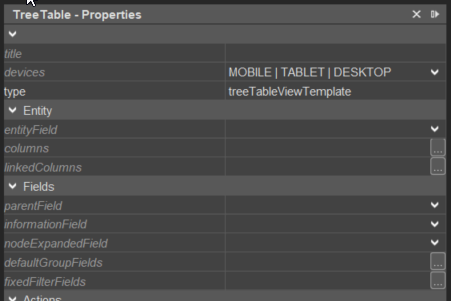

In the ADITO client, TreeTable can be used under Contact Management > Activity, where users can select the TreeTable view and configure grouping in the filter component. Figure: Property configuration for Tree. Figure: Property configuration for TreeTable.

Implementation hints

If expandRootItems is used without paging, the client may load all items at once and performance may degrade.

Parent records must always be provided before child records. Otherwise, the hierarchy cannot be resolved correctly.

Implementation example

The following simplified pattern shows how a tree can be built from organizations and persons:

import { result } from "@aditosoftware/jdito-types";
import { newSelect } from "SqlBuilder_lib";

var personData = newSelect("CONTACTID, FIRSTNAME, LASTNAME, ORGANISATION_ID")
    .from("PERSON")
    .join("CONTACT", "PERSONID = PERSON_ID")
    .where("ORGANISATION_ID is not null")
    .and("PERSON_ID is not null")
    .table();

var orgData = newSelect("CONTACTID, ORGANISATIONID, NAME")
    .from("ORGANISATION")
    .join("CONTACT", "ORGANISATIONID = ORGANISATION_ID")
    .where("ORGANISATION_ID is not null")
    .and("PERSON_ID is null")
    .table();

for (let i = 0; i < orgData.length; i++) {
  for (let j = 0; j < personData.length; j++) {
    if (personData[j][3] === orgData[i][1]) {
      personData[j][3] = orgData[i][0];
    }
  }
}

var res = [];

for (let i = 0; i < orgData.length; i++) {
  res.push([orgData[i][0], null, orgData[i][2]]);
}

for (let i = 0; i < personData.length; i++) {
  res.push([
    personData[i][0],
    personData[i][3],
    personData[i][1] + " " + personData[i][2]
  ]);
}

result.object(res);

This pattern assumes that the corresponding RecordContainer maps UID, PARENT, and TITLE appropriately.
