Tables of ADITO xRM

ADITO projects are usually not built completely from scratch. Instead, they are often based on ADITO xRM or one of its industry solutions. This base project already includes many Entities, for example for contacts, companies, activities, products, offers, and administrative tasks.

tip

Every database table has a primary key column named <table name>ID, for example ORGANISATIONID, according to the ADITO spelling guidelines. When this primary key is referenced in another table, the column is typically named <table name>_ID, for example ORGANISATION_ID. This makes relationships easier to recognize in the data model. In most cases, the primary key value is a 36-character UID.

note

In the xRM project, columns containing foreign keys usually do not have database-level foreign key constraints. This simplifies tasks such as dropping and recreating tables and allows more flexibility when creating interdependent datasets. Whether you follow the same pattern in custom tables depends on your project conventions.

Core tables

Because ADITO xRM focuses strongly on relationships between persons and organizations, the following tables form the core of the xRM data model:

• PERSON: Stores person-related data such as name and date of birth.
• ORGANISATION: Stores organization-related data such as company name, type, and additional information.
• CONTACT:
  • Connects persons and organizations and also links addresses, communication data, and activities.
  • In ADITO, a PERSON or ORGANISATION dataset never stands completely on its own. It is always connected to at least one CONTACT dataset through PERSON_ID and ORGANISATION_ID.
  • Private persons also receive a related CONTACT dataset. In that case, ORGANISATION_ID is 0, not null.
  • An organization without a related person is likewise represented by a CONTACT dataset. In that case, PERSON_ID is null, not 0.
  • In ADITO logic, references to persons and organizations are normally handled through CONTACT_ID, not through PERSON_ID or ORGANISATION_ID.
  • The standard address of a contact is stored in CONTACT.ADDRESS_ID. The field is optional, but if at least one address exists, one of them must be defined as the standard address.
• ADDRESS: Stores address data together with a CONTACT_ID.
• COMMUNICATION: Stores communication data such as phone numbers or email addresses together with a CONTACT_ID.
• ACTIVITY: Stores information about activities such as meetings or calls. Because one contact can be related to multiple activities, ACTIVITYLINK connects ACTIVITY and CONTACT via ACTIVITY_ID and OBJECT_ROWID.

Diagram

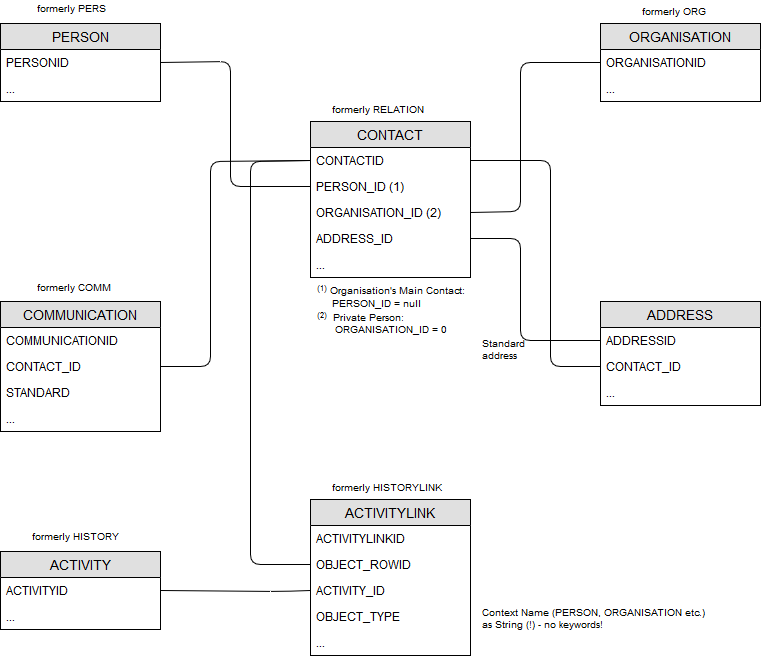

Figure: ER diagram of the ADITO xRM core tables, including their former names up to ADITO 5.

Entities and Database Tables

The corresponding ADITO Entities are not simple 1:1 representations of these database tables, even if the names look similar:

• Person_entity in module contact represents contact persons and is based on both PERSON and CONTACT. In the web client, it appears under the title Contact.
• Organisation_entity in module contact represents organizations and is based on ORGANISATION and CONTACT. In the web client, it appears under the title Company.
• Contact_entity is a special case and is not a direct representation of database table CONTACT. It should not be confused with Person_entity, which appears as Contact in the web client.
• AnyContact_entity combines aspects of Person_entity and Organisation_entity. It displays both persons and organizations and is another special case that can be ignored for the purposes of this overview.
