Database RecordContainer

A Database RecordContainer (dbRecordContainer) provides the standard mapping between EntityFields and database columns and is the most common RecordContainer type in ADITO projects.

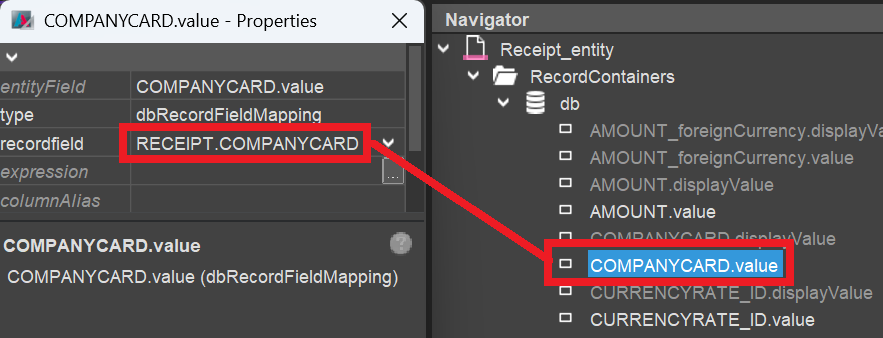

Figure: Mapping of an EntityField on the right and a database column on the left.

The database tables selectable in property recordfield are loaded from the Alias Definition, not directly from the database. Make sure that the Alias Definition is synchronized with the database so that all required tables and columns are available in recordfield.

Based on these RecordFieldMappings, the Database RecordContainer automatically generates the required SQL statements for:

• loading data via SELECT,
• updating data via UPDATE,
• creating data via INSERT,
• ordering data via ORDER BY, and
• deleting data via DELETE.

In addition, you can override specific parts of the generated SQL, especially by using:

• the RecordContainer properties fromClauseProcess (FROM), conditionProcess (WHERE), and orderClauseProcess (ORDER BY), or
• the RecordFieldMapping property expression, for example for a subselect or SQL calculation.

Detailed additional information is available in Basic SQL Statement.

---

Write hooks

onDBInsert, onDBUpdate, and onDBDelete are optional server-side hooks for write operations of a dbRecordContainer. They are intended for follow-up logic that must run together with the database write operation.

Process	Timing	Available variables
onDBInsert	Runs after the record has been inserted.	$local.uid, $local.rowdata, $local.changed
onDBUpdate	Runs after the record has been updated.	$local.uid, $local.rowdata, $local.changed, $local.initialRowdata
onDBDelete	Runs before the record is deleted.	$local.uid, $local.rowdata, $local.changed

Use $local.rowdata and, where available, $local.initialRowdata instead of $field variables in these hooks because field variables can already be outdated at that point. For client-side follow-up actions such as popups or navigation, use afterSave instead of onDB... processes.

Find more information in Load and Write Entity, Execution Order of Entity Processes, and System Variables.

---

COUNT queries

When a dbRecordContainer loads data from the database, in many cases, a SELECT COUNT(*) statement is executed automatically before the SELECT statement of the actual data is executed.

Purpose

The automatic SELECT COUNT(*) query mainly serves the following purposes:

• The number of datasets is stored in specific variables, for example $sys.datarowcount.
• The SELECT statement for retrieving the actual data is skipped if SELECT COUNT(*) returns 0, which means that no datasets are available.

minimizeCountQueries

Usually, a SELECT COUNT(*) statement consumes only minimal system resources. If you still want to reduce the frequency of these queries, you can set the dbRecordContainer property minimizeCountQueries to true. When enabled, the RecordContainer determines the count from the loaded data instead of executing additional count queries.

The minimizeCountQueries property is only visible and effective for non-pageable Database RecordContainers. If isPageable is set to true, the Designer does not show this property, and the setting is not evaluated. This behavior is intentional because pageable RecordContainers require reliable total counts for pagination.

warning

This setting is a performance tradeoff. It can reduce query cost, but count-based display values may become less accurate than with an explicit SELECT COUNT(*) query. This also affects datarowcountfull, especially if the RecordContainer uses maximumDbRows.

For example, assume that maximumDbRows is set to 200, but 456 matching records exist in the database. If minimizeCountQueries is enabled, the RecordContainer can only report the 200 loaded rows because no separate count query is executed. If minimizeCountQueries is disabled, the additional count query provides the full result size of 456.

Caching behavior

Even when a dbRecordContainer uses a cache, a SELECT COUNT(*) statement is still executed. SELECT COUNT(*) queries are generally excluded from caching because they are assumed to consume only minimal system resources.

FROM clause optimization

In fromClauseProcess, you can return different FROM statements for the count query and the data query. This can be useful if a more efficient FROM statement is possible for the count query alone.

The two cases can be distinguished via the local variable $local.isCount, which is true for the count query and false for the data query.
