Consumer filter

A Consumer filter makes filter criteria of a dependent Entity available. This extends the available filtering options of the current Entity.

Example​

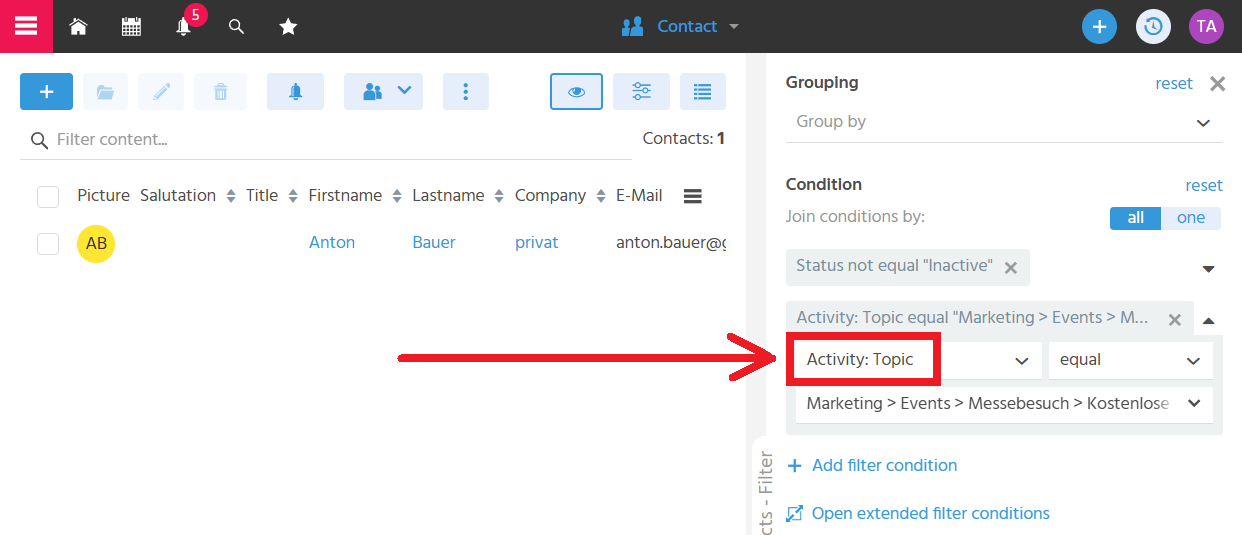

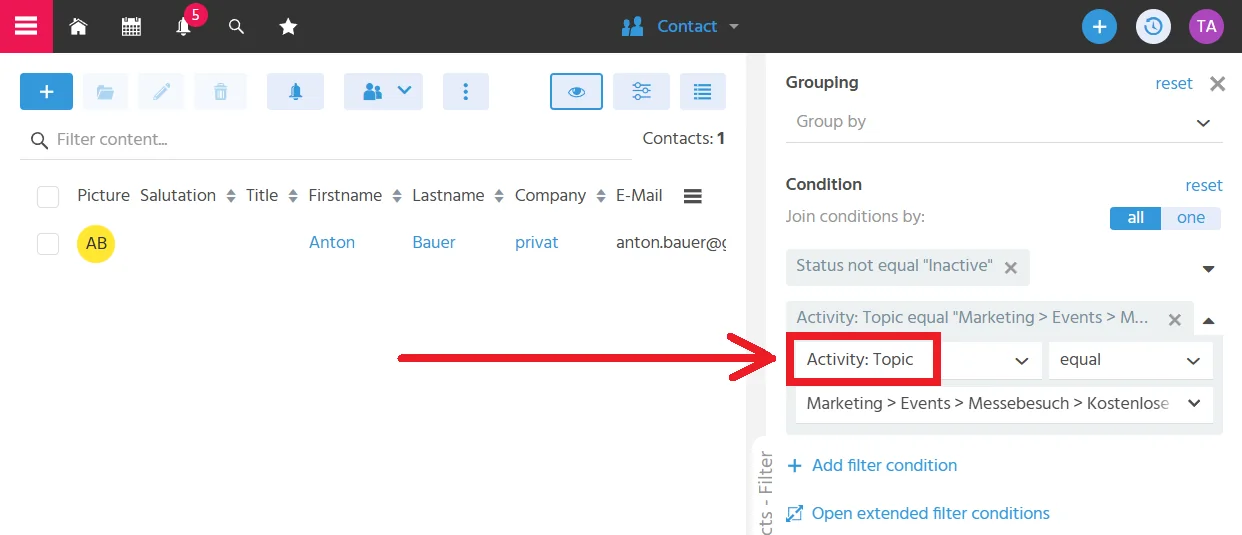

In Context Person, titled Contact in the Global Menu, users can filter contact persons according to the topic of a connected Activity:


This was made possible by the following steps:

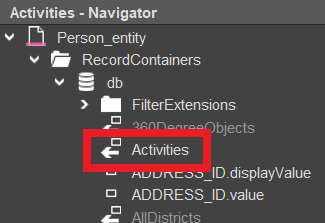

  • In the RecordContainer, the ConsumerMapping for Consumer Activities was initialized.
  • In the property sheet of this ConsumerMapping, filtertype was set to EXTENDED.
  • In the property sheet of this ConsumerMapping, isFilterable was set to true.
  • The ConsumerMapping defines a filterConditionProcess.


import { result, vars } from "@aditosoftware/jdito-types";
import { newSelect, newWhere, SqlBuilder } from "SqlBuilder_lib";

let subselect = newSelect("CONTACT.PERSON_ID")
    .from("CONTACT")
    .join("ACTIVITYLINK", "ACTIVITYLINK.OBJECT_ROWID = CONTACT.CONTACTID")
    .and("ACTIVITYLINK.OBJECT_TYPE", "Person")
    .join("ACTIVITY", "ACTIVITY.ACTIVITYID = ACTIVITYLINK.ACTIVITY_ID")
    .where(vars.get("$local.condition"));

let sql = newWhere("PERSONID", subselect, SqlBuilder.IN());

result.string(sql.toString());
