Filter presets

In addition to filters set manually by the user, ADITO supports predefined filters that are applied automatically, for example when a Context is opened.

FilterBuilder

JDito includes FilterBuilder, a builder pattern that allows even complex filters to be defined in a structured and readable way. In earlier ADITO versions, this had to be implemented manually by building large JSON strings.

FilterGroup and FilterCondition

To use this functionality, first import the system module neonFilter. It includes the following methods:

Name	Description
.createFilterGroup	Creates an object of class FilterGroup.
.createFilterCondition	Creates an object of class FilterCondition.

Creating a FilterGroup is always the starting point. Into this FilterGroup, you can add either a FilterCondition or another FilterGroup, which can in turn contain more FilterGroups or FilterConditions.

Methods of FilterGroup:

Name	Description
.mergeOperator	Defines the logical operator used to connect conditions and subordinated filter groups. Possible values are and and or. Use constants such as neonFilter.MERGE_OPERATOR_AND.
.addFilterGroup	Nests one filter group into another.
.addFilterCondition	Adds a filter condition to the group.
.toJson()	Converts the filter group and all nested content into a JSON string.

Methods of FilterCondition:

Name	Description
.field	The EntityField the filter condition refers to.
.contentType	The content type of the EntityField. Use constants such as neonFilter.CONTENT_TYPE_TEXT.
.searchOperator	The relational operator used for the comparison. Use constants such as neonFilter.SEARCH_OPERATOR_EQUAL.
.key	The value used when the filter is executed. This value is not displayed in the client.
.value	The value displayed in the client when the filter has been set.

Filter referencing a FilterExtension

If your filter condition is related to a FilterExtension, the argument of method field must use the following syntax:

var filterCondition = neonFilter.createFilterCondition()
  .field("#EXTENSION.TestfilterExtension.TestfilterExtension#TEXT")

neon.setFilter

If you want a specific filter to be applied in another part of your project, for example in an Action, use the method neon.setFilter:

var filter = neonFilter.createFilterGroup();

(...) // configuration of filter

neon.setFilter("#ENTITY", filter);

Figure: Pattern for setting a filter in JDito.

---

FilterBuilder examples

The following example creates an extended filter in the client and then shows how the same filter can be represented in JDito.

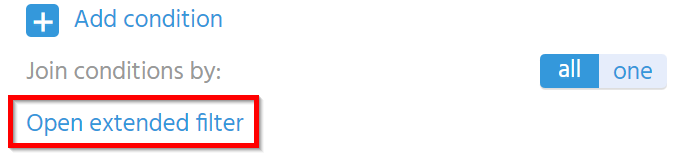

First, click Open extended filter in the filter component of the FilterView of context Contact.

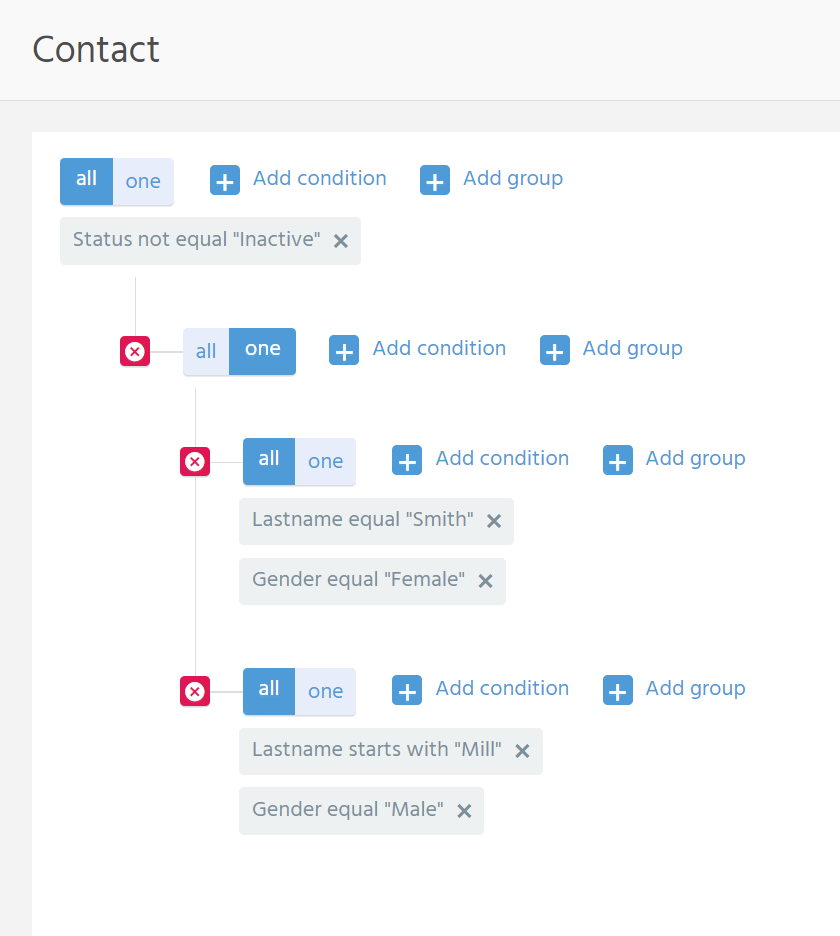

Filter configuration in the client

The extended filter contains four filter groups. The effect of this filter is to show all Contacts that are not inactive and that match either of the following conditions:

• The contact is female and has the last name Smith.
• The contact is male and has a last name starting with Mill.

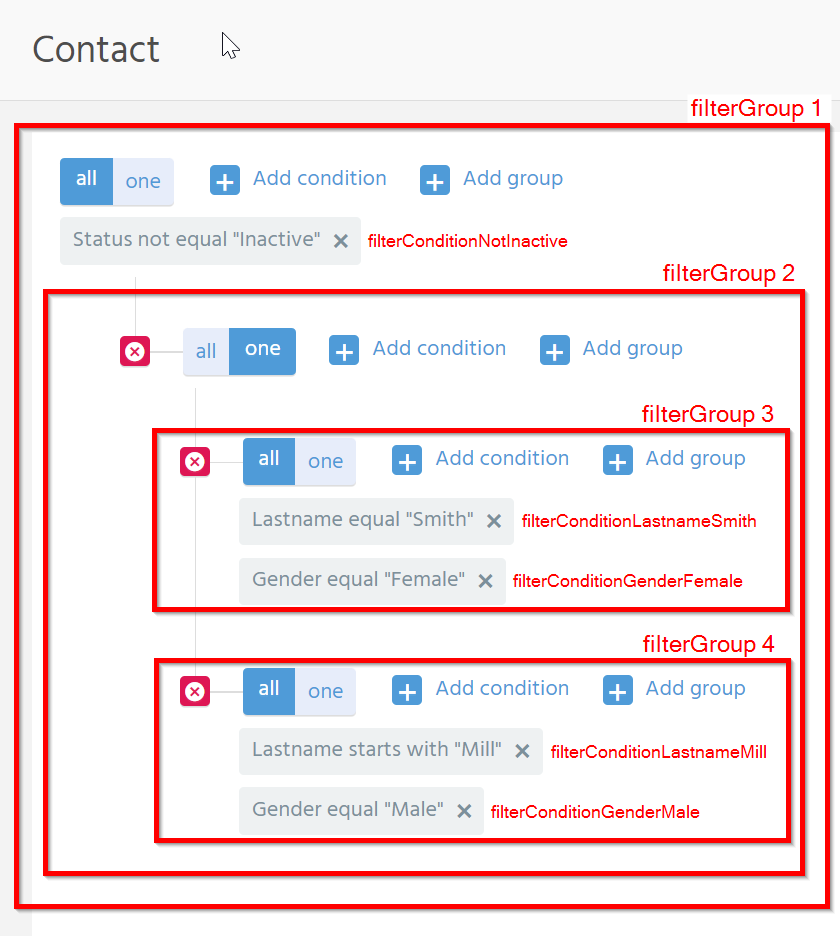

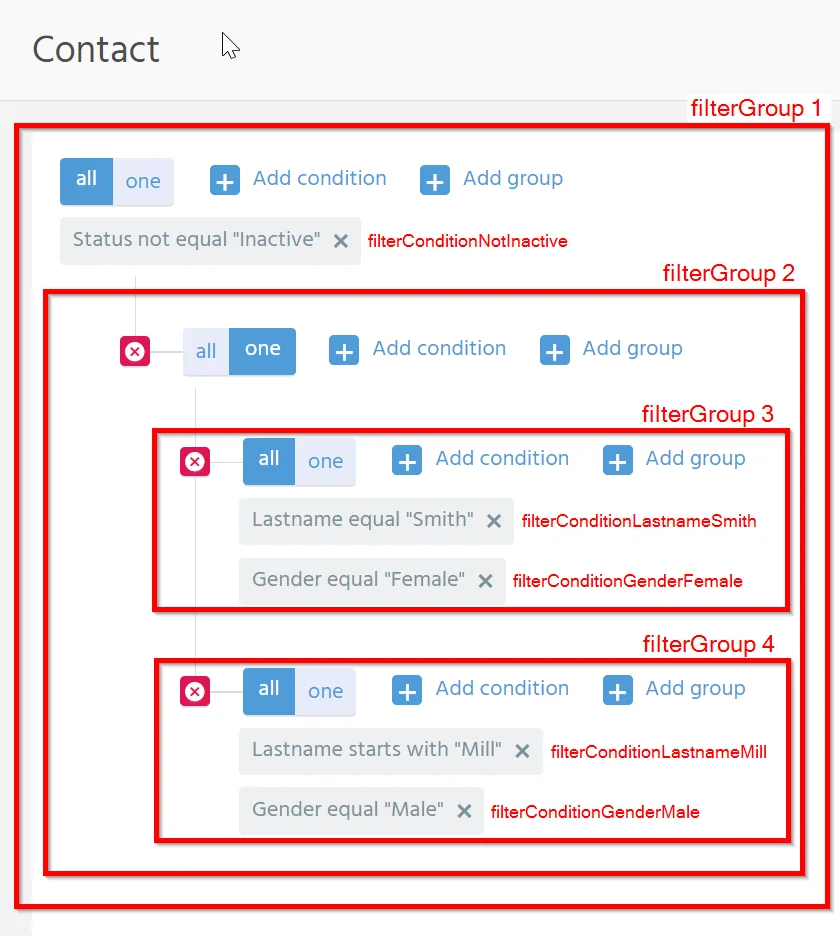

Filter configuration in JDito

var filterGroup1 = neonFilter.createFilterGroup();
filterGroup1.mergeOperator(neonFilter.MERGE_OPERATOR_AND);

var filterConditionNotInactive = neonFilter.createFilterCondition()
.field("STATUS")
.searchOperator(neonFilter.SEARCH_OPERATOR_NOT_EQUAL)
.contentType(neonFilter.CONTENT_TYPE_TEXT)
.value("Inactive")
.key("CONTACTSTATINACTIVE");

filterGroup1.addFilterCondition(filterConditionNotInactive);

var filterGroup2 = neonFilter.createFilterGroup();
filterGroup2.mergeOperator(neonFilter.MERGE_OPERATOR_OR);
filterGroup1.addFilterGroup(filterGroup2);

var filterGroup3 = neonFilter.createFilterGroup();
filterGroup3.mergeOperator(neonFilter.MERGE_OPERATOR_AND);
filterGroup2.addFilterGroup(filterGroup3);

var filterConditionLastnameSmith = neonFilter.createFilterCondition()
.field("LASTNAME")
.searchOperator(neonFilter.SEARCH_OPERATOR_EQUAL)
.contentType(neonFilter.CONTENT_TYPE_TEXT)
.value("Smith")
.key("Smith");

filterGroup3.addFilterCondition(filterConditionLastnameSmith);

var filterConditionGenderFemale = neonFilter.createFilterCondition()
.field("GENDER")
.searchOperator(neonFilter.SEARCH_OPERATOR_EQUAL)
.contentType(neonFilter.CONTENT_TYPE_TEXT)
.value("Female")
.key("f");

filterGroup3.addFilterCondition(filterConditionGenderFemale);

var filterGroup4 = neonFilter.createFilterGroup();
filterGroup4.mergeOperator(neonFilter.MERGE_OPERATOR_AND);
filterGroup2.addFilterGroup(filterGroup4);

var filterConditionLastnameMill = neonFilter.createFilterCondition()
.field("LASTNAME")
.searchOperator(neonFilter.SEARCH_OPERATOR_STARTSWITH)
.contentType(neonFilter.CONTENT_TYPE_TEXT)
.value("Mill")
.key("Mill");

filterGroup4.addFilterCondition(filterConditionLastnameMill);

var filterConditionGenderMale = neonFilter.createFilterCondition()
.field("GENDER")
.searchOperator(neonFilter.SEARCH_OPERATOR_EQUAL)
.contentType(neonFilter.CONTENT_TYPE_TEXT)
.value("Male")
.key("m");

filterGroup4.addFilterCondition(filterConditionGenderMale);

note

In practice, reference KeywordEntries through the usual JDito methods instead of hard-coded values.

initFilterProcess

If a specific filter should be preset when a Context is opened, the usual implementation point is the Entity initFilterProcess. The filter itself is typically built via FilterBuilder.

Example task

When opening the FilterView of Context Person, titled Contact in the client, only persons whose last name includes the letter M should be shown.

import { neon, neonFilter, result, vars } from "@aditosoftware/jdito-types";

if (vars.get("$sys.presentationmode") === neon.CONTEXT_PRESENTATIONMODE_FILTER)
{
    var recordState = vars.get("$sys.recordstate");
    if (recordState != neon.OPERATINGSTATE_SEARCH)
    {
        var filter = neonFilter.createFilterGroup()
        .mergeOperator(neonFilter.MERGE_OPERATOR_AND)
        .addFilterCondition(neonFilter.createFilterCondition()
            .field("LASTNAME")
            .key("M")
            .value("M")
            .searchOperator(neonFilter.SEARCH_OPERATOR_CONTAINS)
            .contentType(vars.get("$property.LASTNAME.contentType"))
        );
    result.string(filter.toString());
    }
}
